Physical Model Sketch

Trebuchet Physical Model Sketch

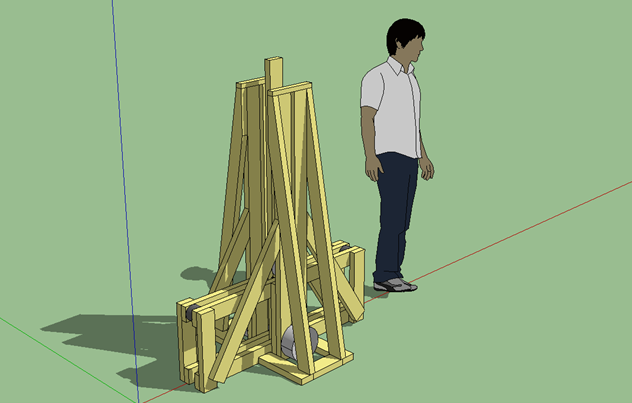

This is a three-diminsional model of the trebuchet done on Google SketchUp. (Photo by Drew Prosser)

Physical Model Dimensions

Trebuchet Physical Model Dimensions

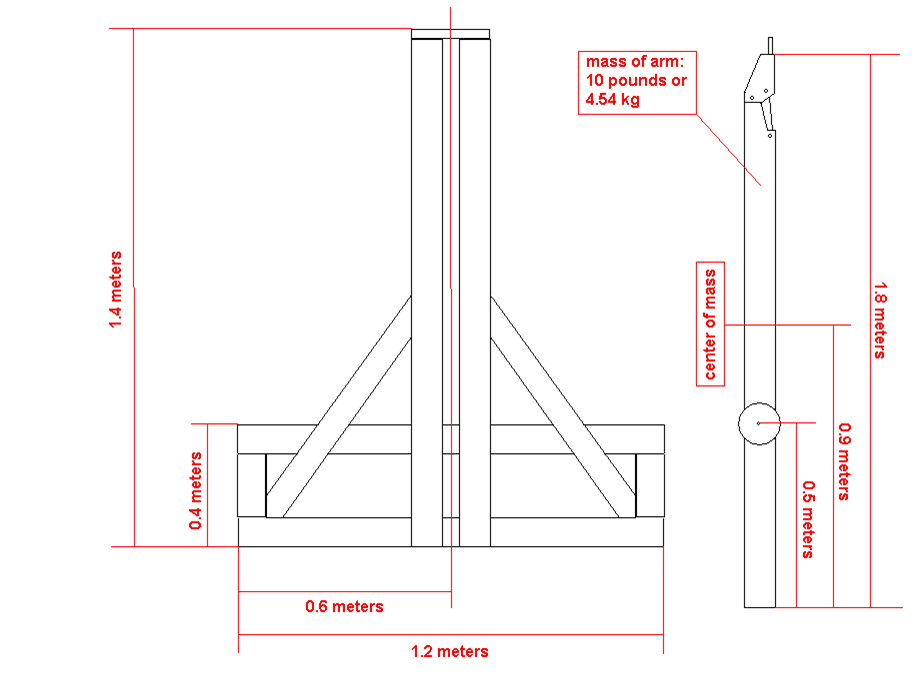

The sketch above is the specifications for our trebuchet. The actual built trebuchet was built to match this sketch as accurately as possible. (Photo by Drew Prosser)
